Page 1     Bluetooth Series

 1



  • Item No.: Muses 801
  • Bluetooth V1.2 class 2
  • Bluetooth Stereo Headset For Mobile Phone / Skype /MP3/CD/DVD players

View image >>      Specification

  • Item No.: BBT-HF-001-5320
  • Bluetooth Handsfree

View Package:..>>    Specification

  Bluetooth is a technology for wireless communication between devices. It's based on a low-cost short-range radio link.

  • Item No.: BT-HBC-06-S
  • Bluetooth Handsfree Car Kit

View Package:..>>    Specification

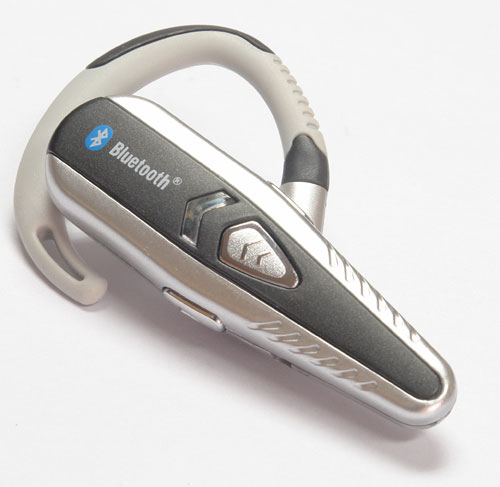

  • Item NO.:BT-HBC-08
  • Bluetooth Headsfree for Mobile Phone

View Package:..>>    Specification

  • Item NO.:BT-HBC-19
  • Bluetooth Headsfree for Mobile Phone

View Package:..>>    Specification

  • Item No.: BT-HBC-25
  • Bluetooth Headsfree for Mobile Phone

View Package:..>>    Specification

 　

　

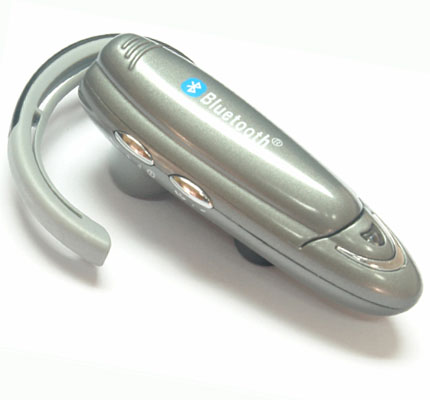

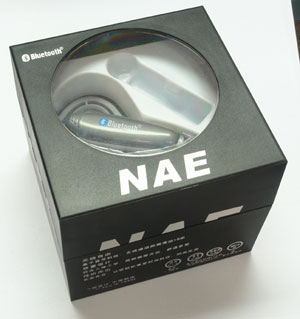

  • Item No.: BT-NAE-1
  • Bluetooth Headsfree for Mobile Phone

View Package:..>>

 　

　

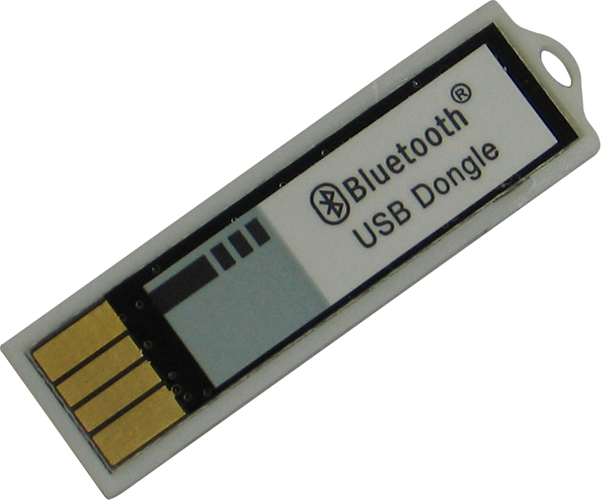

  • Item No.: BT-DG-1
  • Bluetooth Dongle
  • USB Bluetooth Dongle
  • Ultra slim type thickness : 2.71mm

View Package:..>>    Specification

 　

　

  • Item No.: BT-DG-2
  • USB Bluetooth Dongle
  • Operation range:100m(Bluetooth class 1)

View Package:..>>    Specification

 　

　

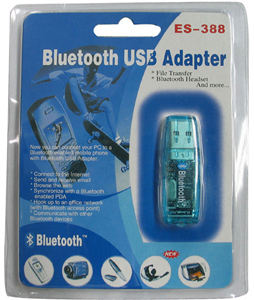

  • Item No.: BT-DG-3
  • USB Bluetooth Dongle
  • Bluetooth V1.6 compliant
  • Operation range:Up to100m (Bluetooth class 1)
  • Max. data rate:1MB.

View Package..>>    Specification

 　

　

  • Item No.: BT-DG-4
  • USB Bluetooth Dongle

  • USB V2.0 compliant

  • Operation range; 20m~100m(Bluetooth class 1)

  • Maximum data rate: 3MB

View Package..>>   Specification

 　

　

  • Item No.: BT-FM-5
  • Wireless FM Transmitter

Description

The Universal FM Transmitter with LCD is an FM transmitter that uses a stereo line in for compatibility with any device with a standard 3.5mm jack. Powered by

two AAA batteries, the Universal FM Transmitter with LCD can work with any audio device and with any radio and will last for 10 hours with one set of batteries.

The standard 3.5mm jack can be used with iPods, MP3 players, PCs, laptops, PDAs, and mobile phones ( request Audio adapter )

View Package..>>   Specification

  　

　
Why Bluetooth is Good for You

Every decorator knows that cables and wires are unsightly and confusing. Bluetooth connections allow wireless communication

between devices within a range of about 30 feet (10 meters). Unlike infrared, you don't have to point devices directly at each other,

or even have both devices in the same room. Bluetooth can initiate connections automatically with paired devices, so you don't even

have to think about it. And no, you don't have to pay for a Bluetooth connection, no matter how much data you transfer.


How it Works

When two devices share information, there are a few things that have to be worked out: firstly, how they will physically connect - through

how many wires? Or none at all? - and then, what are the agreed commands that will make sense to both devices (the protocol)? Bluetooth

is an industry standard that solves both of these issues cheaply, and using very little battery power.







Back To Top

(C)Copyright & copy 2006, Baseband Industrial Co., Ltd. All rights reserved.
Reproduction in any form without prior authorization is prohibited

　

　

　

　

　

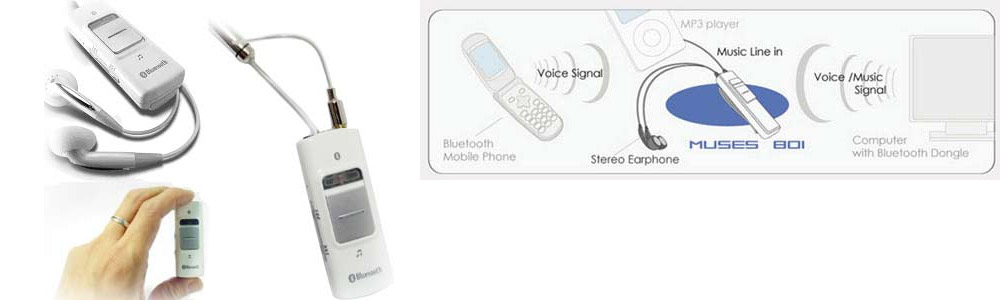

Bluetooth Stereo Headset

Muses 801 is a combined AV headset allows the user to listen to stereo music streamed over a Bluetooth wireless technology link while simultaneously maintaining a connection to Bluetooth-enabled handset or PC.  This allows the media stream to be interrupted to make a receive call.  It also can be connected to personal audio devices such as MP3 players, radios and portable CD/VCD/DVD players through an audio cable.  With the Muses 801, you never worry about missing calls while listening to music from PC or even from external audio devices.

Feature

  1.  Stereo audio streaming from PC/Bluetooth enabled phone or devices

  2.  Auto switching from music to cellular phone when receiving incoming phone calls

  3.  User-Friendly button control - volume up/down, Forward/Backward

  4.  Built-in buzzer to warm you incoming calls while not wearing the earphone

  5.  Buzzer can be turned off if necessary

  6.  Able to listen to music from normal MP3/CD/DVD players through an audio cable,

  7.  no power is needed from the headset in this case

  8.  3.5 mm earphone jack allows to use your favorite earphone

Specifications:

 Bluetooth Version

 Bluetooth v1.2 class 2

 Dimension

62 x 26 x 24 mm  (L x W x H)

 Weight

20 g

 Talk time

 Up to 8 hrs (rechargeable battery) or 10 hrs (Alkaline battery)

 Music playback time

Up to 6 hrs (rechargeable battery) or 8 hrs (Alkaline battery)

 Standby time

 Up to 250 hrs

 Range

 10 meters (33 feet)

 BT Profiles Supported

 Headset, Handsfree, A2DP

 Battery

1 AAA battery

Accessories

Stereo earphone, Mono earphone, audio cable, clip back cover

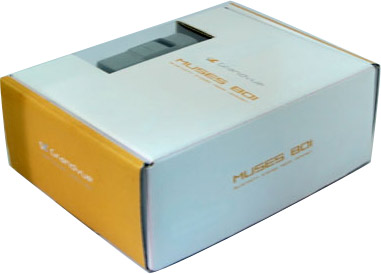

 Packing

40 pcs (color box) / 9 Kgs G.W. / Carton / 55 x 38 x 35 cm

　

　

Back to Top

　

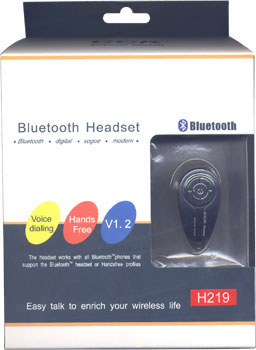

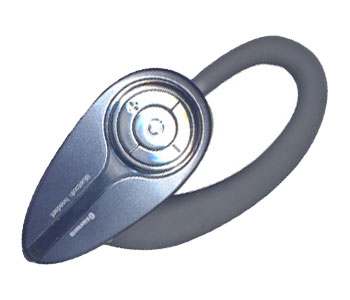

Blue Tooth Handsfree

Item No.:BT-HF-002-5320
Bluetooth specification:
Supporting edition Bluetooth V1.2 Operating current ≦50MA
Frequency range 2.4GHz-2.4835GHZ Standby current ≦40MA
Transmission power Class2 Charging time 3-4H
Transmission distance 10m Talking time ≧7H
Environment temperature Working:-20℃-60℃ Standby time 100H
No working:-20℃-60℃ Operating voltage 3.6V
Charging:0℃-45℃ color

Contexts:
1:headset
2:Travel Charger
3:string
4:Direction book
5:Hook.

Back to Top

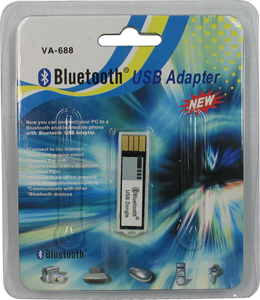

  • Item No.: BT-DG-1
  • Bluetooth V1.2/2.0 compliant.
  • USB UHCI/OHCI spec.2.0 compliant.
  • Working distance:0-100meters
  • Works with Bluetooth enabled mobile phones.

Back to Top

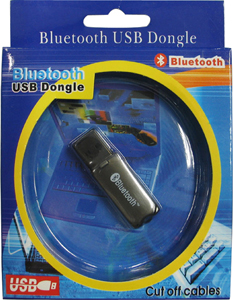

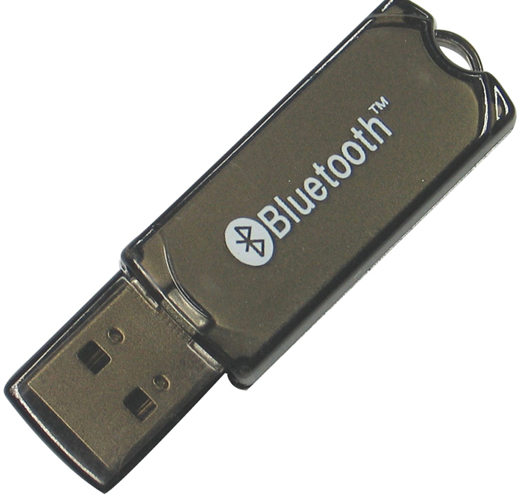

  • Item No.: BT-DG-2

  • USB Bluetooth Dongle

  • Bluetooth V1.2 compliant

  • USB V1.0/1.1 compliant.

  • Operation range:100m(Bluetooth class 1)

  • Built in antenna.

  • Frequency band:2.4GHz unlicensed ISM band.

  • Max. data rate:1MB.

  • Sensitivity:-89dBM@0.1%BER.

  • LED status indicator.

Back to Top

  • Item No.: BT-DG-3

  • USB Bluetooth Dongle

  • Bluetooth V1.6 compliant

  • USB UHCI/OHCI spec.2.0 compliant.

  • Operation range:Up to100m(Bluetooth class 1)

  • Built in antenna.

  • LED status indicator.

  • Frequency band:2.4GHz unlicensed ISM band.

  • Max. data rate:1MB.

  • Sensitivity:-89dBM@0.1%BER.

Back to Top

　

　

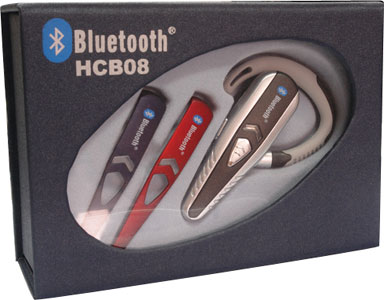

  • 1)       Item No.:BT-HBC-08

  • 2)       standard convention/signal output :Bluetooth V1.2.Class 2.

  • 3)       Frequency band:2.4GHz—2.4835GHZ.ISM band.

  • 4)       Talk/Standby time: Up to 6 hours/Up to 250 hours.

  • 5)       Supporting profile : Headset & Handsfree.

  • 6)       Power rating:1mW.

  • 7)       Connection: peer to peer.

  • 8)       Data Encryption:128 bits encrypted.

  • 9)       Power consumption:30mA(while talking);﹤1mA(while being standby)

  • 10)   Power capacity : Rechargeable Li-Polymer battery 120mAh.

  • 11)   Power supply:5V DC,100-240V AC adapter.

  • 12)   Operation temperature:-10-55℃

  • 13)   Facility saving Temperature:-20-60℃.

  • 14)   Operation moisture:10%-90%(non-concrete status)

  • 15)   Weight :14.5g(battery included)

  • 16)   Size:69.6x20.8x11.8mm

  • 17)   Safety regulation: CE.FCC,BQB.

Back to Top

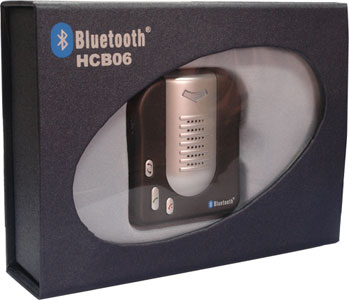

  •  Item No.:BT-HBC-06

  • Frequency:2.4GHz

  • Channels:79

  • Rechargeable battery type:AAA Ni-MH

  •  Standby time:120 hours

  • Talking time:3 hours.

  • Communication range:10m.

Future:

The Bluetooth Handsfree car kit had a clipping on to a right place or you can fix it at the suitable in a car  ,

Preventing a possible fall off when driving .

Accessories:

  • Car Charger

  • Travel Changer

Back to Top

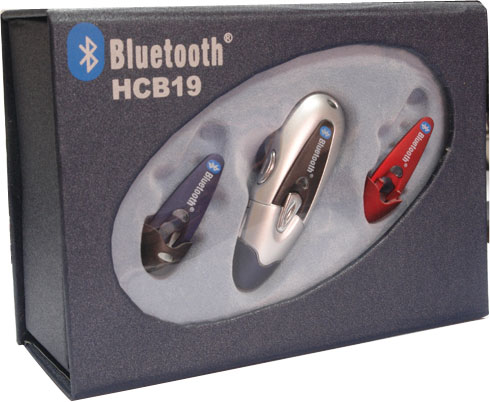

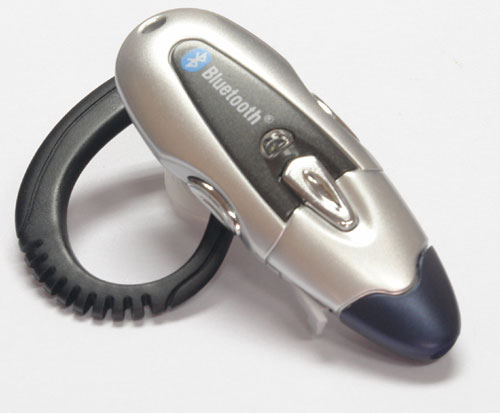

1)      Item No.: BT-HBC-19

2)       Standard convention/Signal output:Bluetooth V1.2,class 2.

3)       Frequency band:2.4 GHz-2.4835GHz,ISM band.

4)       Talk/Standby time:Up to 6 hours/up to 250 hours.

5)       Supporting profile:headset&handsfree.

6)       Power rating:1mW.

7)       Connection: peer to peer.

8)       Data Encryption:128 bits encrypted.

9)       Power consumption:30mA(while talking);﹤1mA(while being standby)

10)   Power capacity: rechargeable Li-Polymer battery 120mAh.

11)   Power supply:5V DC,100-240V AC adapter.

12)   Operation temperature:-10-55℃

13)   Facility saving temperature:-20-60℃

14)   Operation moisture:10%-90%(non-concrete status)

15)   Weight :11g(battery include)

16)   Size:61.5x23x11.4mm

17)   Safety regulation:CE,FCC,BQB.

Back to Top

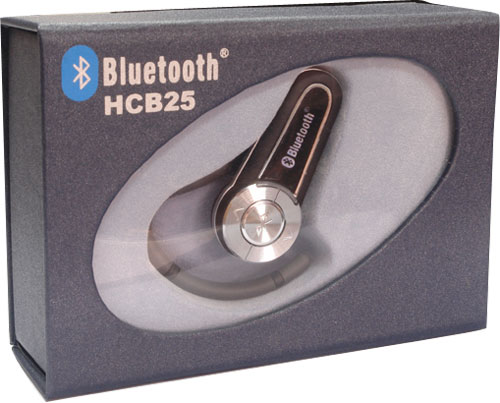

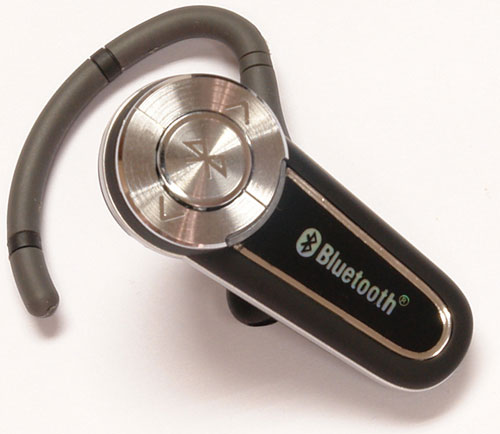

  • Item NO.:BT-HBC-25
  • Bluetooth Headset for Mobile Phone
  • With USB type Travel Charger

  •  Standard convention/signal output:Bluetooth V1.2 ,class 2

  • Frequency band:2.4GHz-2.4835GHz,ISM band.

  •  Talk /standby time :up to 6 hours/up to 250 hours

  •  Supporting profile:headset & handsfree.

  • Power rating :1mW.

  • Connection:peer to peer.

  •  Data encryption:128 bits encrypted.

  •  Power consumption: 30mA(while talking);＜1mA(while being standby)

  •  Power capacity: rechargeable Li-Polymer battery 120mAh.

  • Power Supply: 5VDC,100-240V AC adapter.

  •  Operation temperature:-10-55℃

  • Facility saving temperature:-20-60℃.

  •  Operation moisture:10%-90%(non-concrete status).

  • Weight :11g (battery included).

  • Size:54x24x20mm

  • Safety regulation:CE.FCC,BQB

  • Back to Top

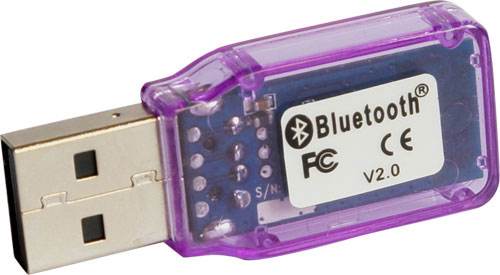

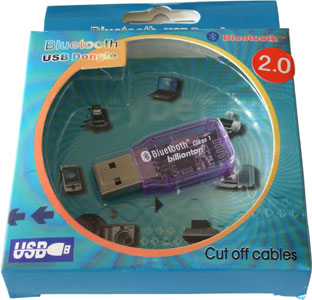

Bluetooth USB Dongle

Item No.:BT-DG-4

　

Description:

Bluetooth USB Dongle is a quick and inexpensive solution as a Bluetooth plug-on

modules to computers. It enables computers to communicate with any Bluetooth

peripherals(such as computers, PDAS, mobile phones, printers)wirelessly.

Specifications

  • Bluetooth V2.0 compliant

  • USB V2.0 compliant

  • Operation range; 20m~100m(Bluetooth class 1)

  • Built-in antenna

  • Frequency band:2.4Ghz unlicensed ISM band

  • Maximum data rate: 3MB

  • Sensitivity:-89dBM@0.1%BER

  • LED status indicator

 Software support：

  • Windows 98/98SE/ME

  • Windows2000

  • WindowsXP

　

Back to Top

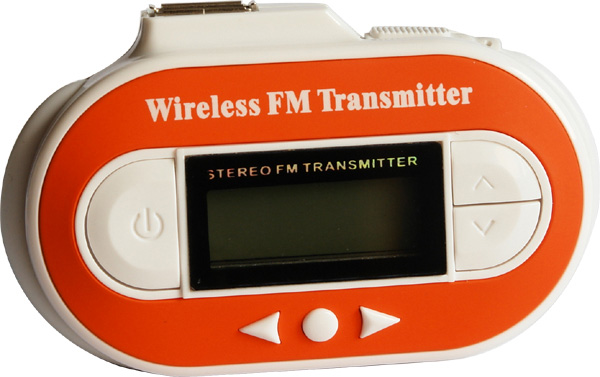

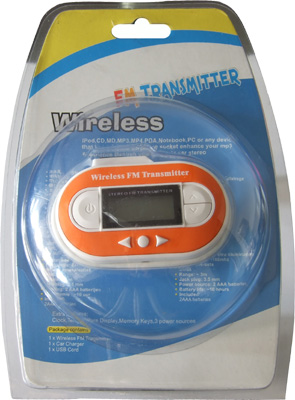

Wireless FM Transmitter

Item No.:BT-FM-5　

　

Description

iPod,CD,MD,MP3,MP4,PDA,Notebook,PC or any device that has a 3.5mm earphone socket enhance your mp3 exerience through your hone or car stereo

Specification:

  • Digital display + retro illumination

  • Frequency: 87-108 mhz

  • 10 radio pre-sets

  • Clock display

  • Range: ~3m

  • Jack plug: 3.5mm

  • Power source: 2 x AAA batteries / USB Cord  / Car Charger

　

Extra Function:

       Clock, Temperature Display, Memory Keys,

　
